Maptek VisionV2X is a simple solution with an important mission - to keep all personnel and vehicles working underground safe.

Leveraging proven automotive proximity awareness technology, Maptek has created a reliable, underground safety detection system aligned with global safety guidelines.

Input from ergonomics and human experience experts has resulted in a simple, intuitive interface that provides vehicle operators with visual and audible alerts when vehicles and people enter warning zones, allowing them to take action to avoid collisions.

VisionV2X applies the latest dynamic meshing Wi-Fi technology tailored for conditions underground. It provides reliable ranging and communications across all levels of activity, including non-line-of-sight and around corners.

The Maptek system can be installed on existing and mixed manufacturer fleets. Detailed proximity data is logged and sent to a central server for analysis and reporting, enabling operations to maintain a safe working environment.

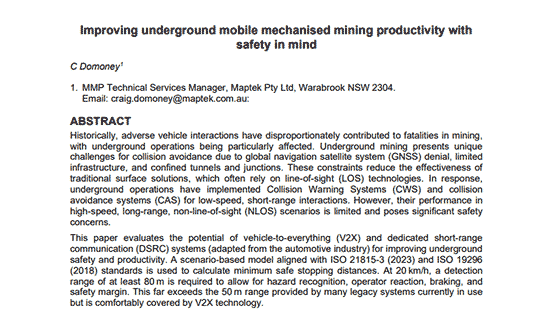

Underground vehicle detection

Underground vehicle detection

Case Study

Maptek VisionV2X proximity detection has been in steady use at Oyu Tolgoi for more than 2 million vehicle operating hours, contributing to safety underground.

Your eyes underground

Maptek can configure VisionV2X to site traffic and safety plans, and set up a change management program to ensure smooth implementation at your site.

VisionV2X can be used on existing and mixed OEM fleets. The robust hardware has minimal components, allowing for easy installation and maintenance.

Rugged HMI tablets are installed in heavy vehicle cabs, with pedestrian location enabled via standard helmet or belt PPE worn underground.

Site implementation involves a proof-of-concept and pilot program, with installation, commissioning, decommissioning and performance reports.

System training covers the VisionV2X interface and protocols for handling visual and audible alerts indicating at-risk personnel and vehicles.

Features

Advanced detection technology - Range detection beyond 100 metres, around corners or obstacles

Dynamic meshing wi-fi - Functions continuously underground, even in areas without power, GPS or network access

Robust radio technology - Consistent, accurate communication that withstands electromagnetic interference and signal blockage

Ergonomic touchscreen interface - Visual and audible alerts for identifying at-risk personnel and vehicles

Versatile installation - Deploy on existing equipment, including mixed manufacturer fleet and equipment types

Automated internal checks - Reliable, consistent system operation

Detailed and contextual data - Onboard data logging and summary reporting combine to guide operational improvements

Benefits

Mitigate risk - Analysing vehicle interaction patterns helps with proactive safety measures before accidents happen

Seamless installation - Minimal ‘plug and play’ components with centralised configuration tools for easy implementation

Prioritise resources - Improved signage, enhanced training or route modifications can be targeted to high-risk locations

Data-driven decision making - System instils confidence for evidence based decisions

Behavioural accountability - Detailed data logging allows for individualised training and intervention measures

Improved safety culture - Heightened awareness of safety protocols leads to a more safety conscious workforce

Peace of mind with VisionV2X

Mine and Shift Managers
Meet corporate and site objectives for workplace safety and comply with regulatory safety guidelines. Ensure personnel and machinery are equipped with a reliable, proven underground proximity detection system. Shift management decisions benefit from timely, accurate information, aided by remote visualisation of every corner of the mine operations.
Underground Forepersons
The underground foreperson is under production pressure for their crew to deliver tonnage or volumes. They are also responsible for crew safety. It is important that the system is available and operating reliably with a high uptime so that productivity is not negatively impacted.

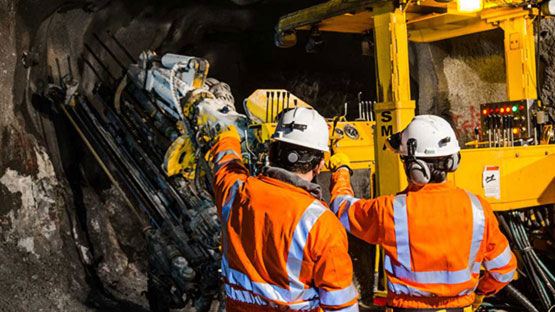

Mine Operations Managers
Operations managers are tasked with deploying technologies to meet operational safety KPIs and keep the mine running to production schedule. They require an easy-to-use solution they can rely on to pre-empt incidents and protect everyone working underground.

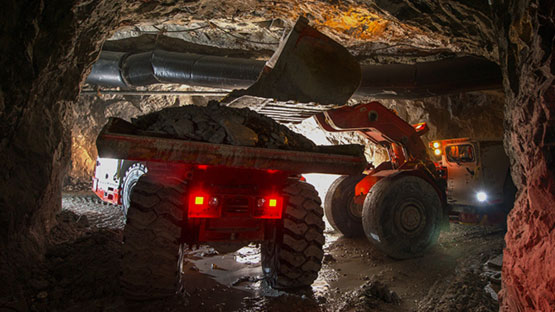

Heavy Vehicle Operators
Vehicle operators can play their part in helping to keep everyone safe underground by knowing the proximity of at-risk personnel and vehicles. A simple, proven interface developed for underground mine vehicles supports their goals.
